TurfRoller TR5000
TurfRoller - Tools and Devices
6400214

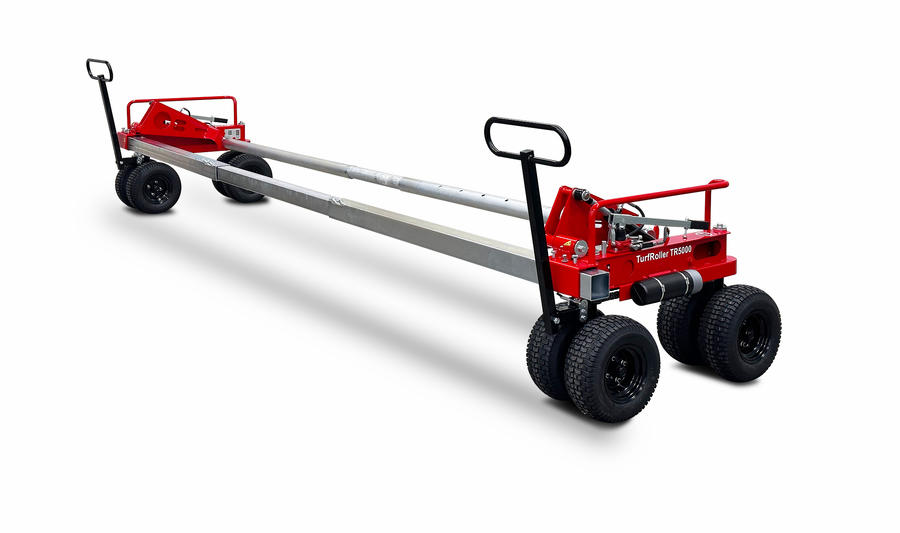

Cart with hydraulic lifter for the transport and rolling out of artificial turf.
By using the TurfRoller TR5000 for laying of artificial turf the user will benefit from a considerably reduced workload because this device makes the transport and laying of turf rolls very easy.
Traditionally, artificial turf track installation is characterized as labour-intensive, and energy- and time-consuming. In contrast, the reasonable construction of the TurfRoller TR5000 allows a precise positioning and rolling out of a turf roll making a subsequent adjustment nearly unnecessary.
The TurfRoller TR5000 is able to easily lay artificial turf rolls of up to 5 m wide. TurfRoller TR5000 consists of two carts. Each cart is equipped with two steerable double pneumatic tires being steered by a drawbar.
The minimal surface pressure on the subbase is guaranteed and thus the transport on unbounded elastic layers is an effortless business.
With this clever steering mechanism, TR5000 is variable and precise to manoeuvre in all directions.

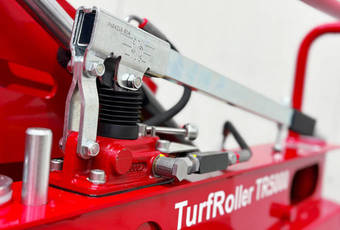

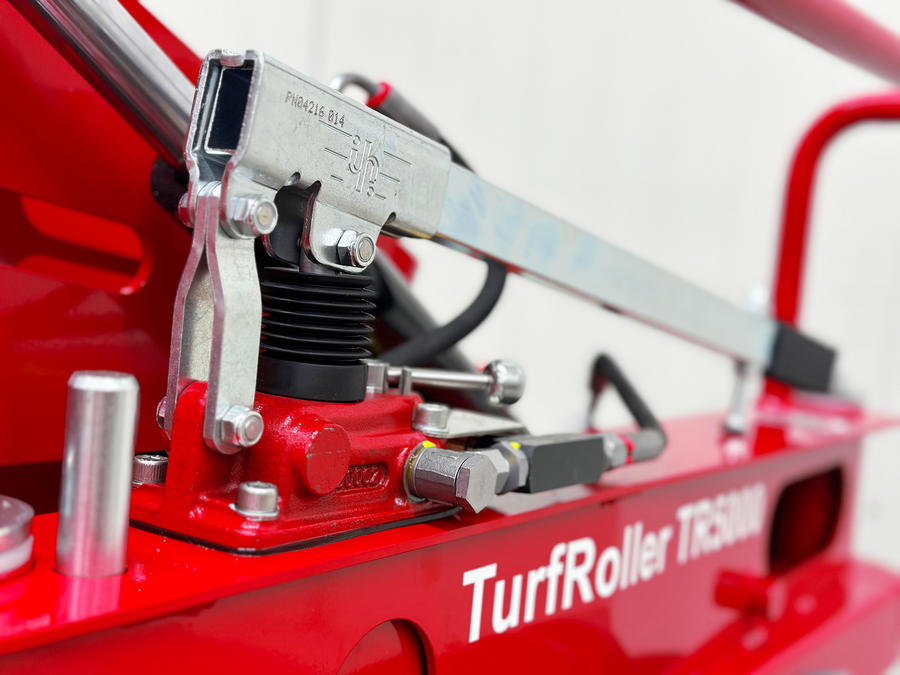

Hydraulic pump, lifting capacity up to 1.500 kg.

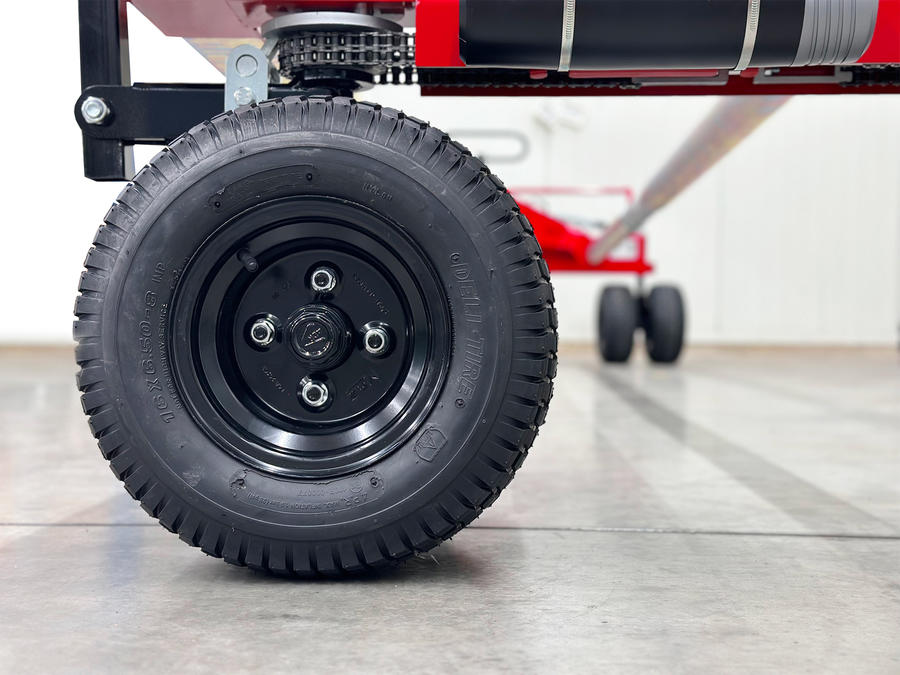

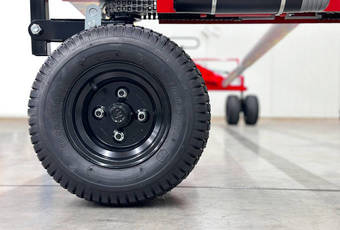

Unique steering system for front - and rear axles.

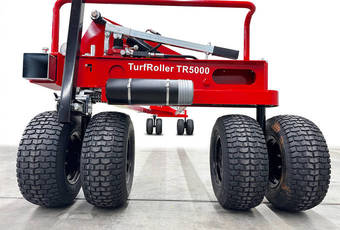

8 turf tires for minimum surface pressure.

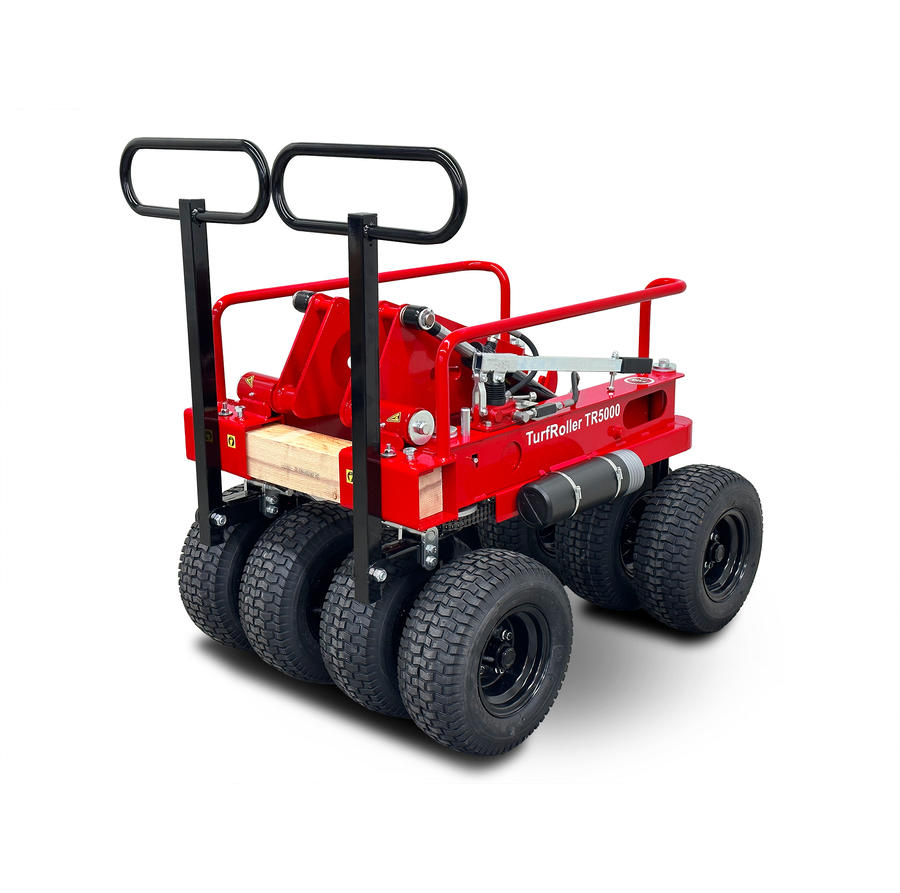

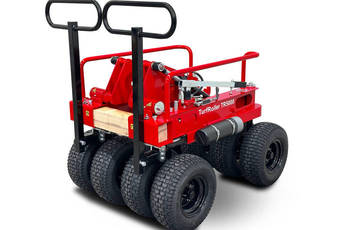

Extremly compact transport dimensions.
Technical information:
Lifting height | 400 mm |
---|---|
Lifting power | approx. 1,500 kg |
Weight | 330 kg |
Dimensions | L 1,250 x W 5,600 x H 1,250 mm |
Shipping dimensions | L 1,250 x W 850 x H 1,250 mm |
Subject to technical changes
